Specifications




 Modules used in overslung gimbal mode.

Modules used in overslung gimbal mode.

 The XOvest.

The XOvest.

 Nostromo on speed rail vehicle mount.

Nostromo on speed rail vehicle mount.

Supported gimbals

  • DJI Ronin series.
  • All Freefly gimbals. (With toad in hole).
  • Tilta Gravity
  • Arri Maxima
  • Letus Helix

(Others can be adapted. Please contact us if yours is not mentioned here.)

Nostromo Arm

  • 20kg carrying capacity.
  • 3.7kg weight.
  • Titanium spring.
  • Universal speed rail/scaff clamp.
  • Quick release module adapter.
  • Fluid dampened.

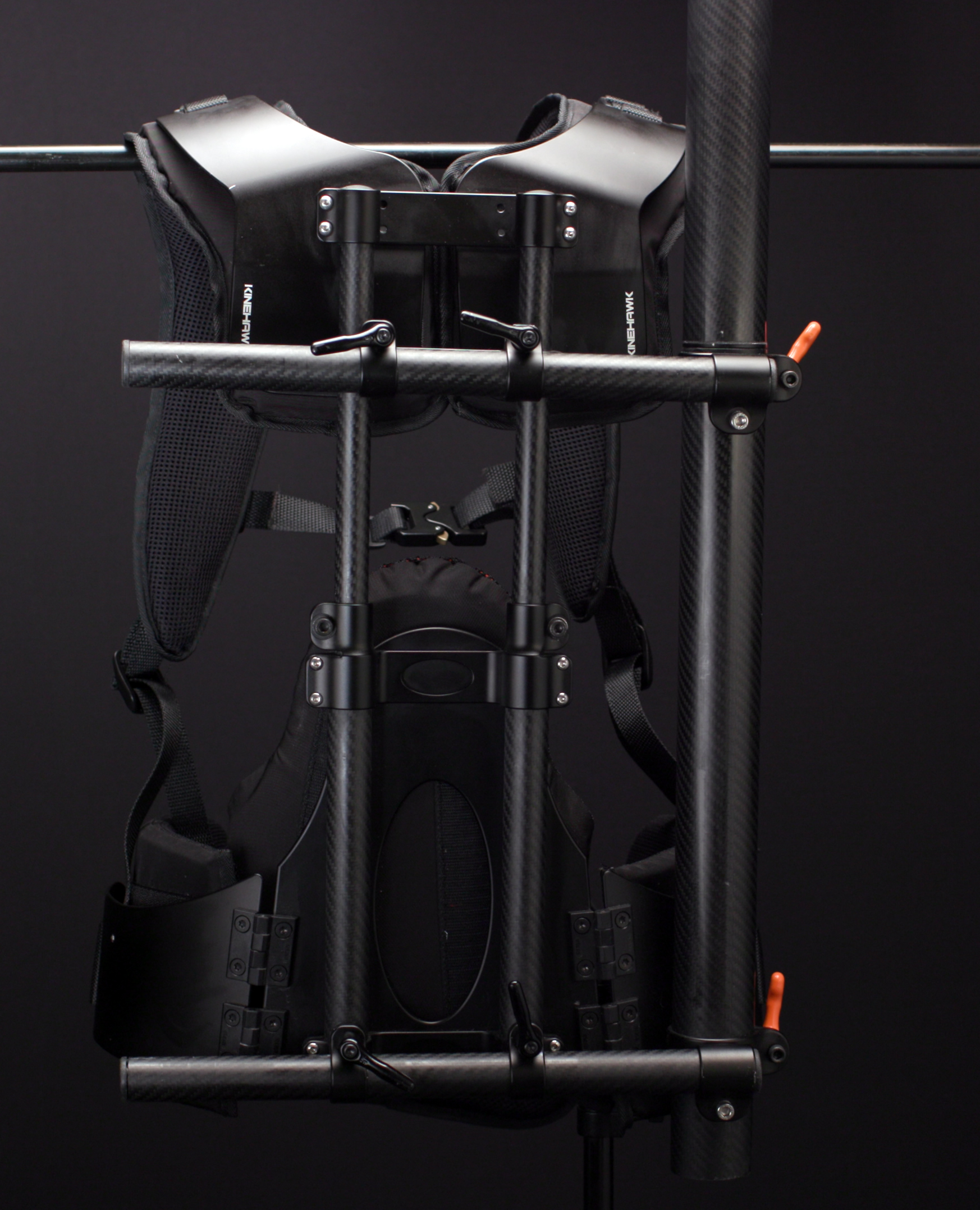

XOvest

  • Fits virtually any body size.
  • Resists torsional forces.
  • 2kg weight.
  • Ergonomic design.
  • Minimal body contact points and large air flow.
  • Heavy duty carbon fibre 48.3mm/ 1,1/2" support post. (Post is 2 piece for travel)

COG pan/tilt handles.

  • Replaces handles on DJI, Freefly and Tilta gilmbals, plus others with similar design.
  • Allows pan and tilt through the camera's centre of gravity.
  • Fluid dampened pan.
  • Arri rosette mount for grips and extension grips. (In production version).
  • Built in quick-release female socket.

Spacial damper/ quick release module.

  • Spacial damper dampens and isolates residual movement on all axis.
  • Quick release utilises a one lever, dual lock mechanism. If the lever is accidentally released, the gimbal/ camera is still locked in place.
  • Super quick docking/undocking.

100mm bowl module.

  • Accepts fluid heads with a 100mm bowl.
  • Attaches via module quick release to the Nostromo arm.
  • Allows for vertically stabilised hand held.

Easy module.

  • 25kg carrying capacity.
  • Cord based camera support.
  • Takes majority of weight when camera is lifted or pushed down.
  • Camera stays in position when lifting or downward force is released.
  • Attaches to XOvest main support rod.
